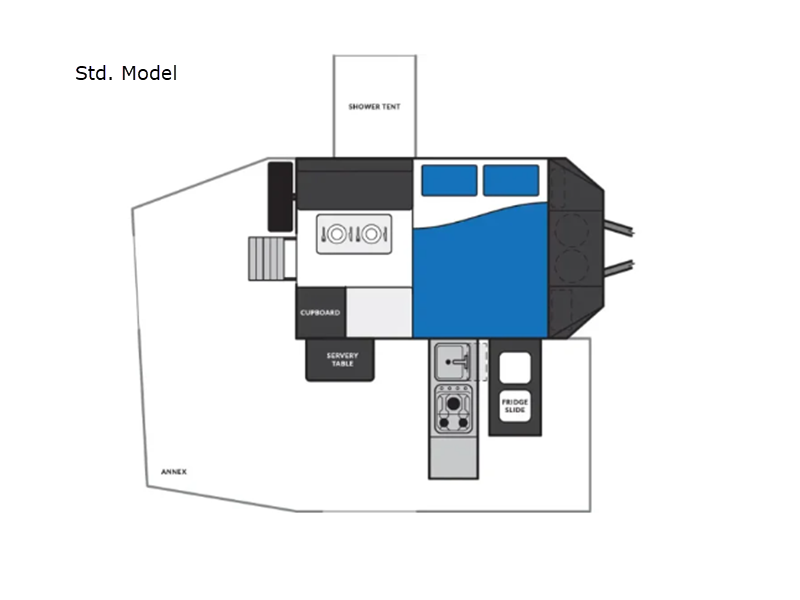

New 2024 MDC USA Forte 9+ Std. Model

Standard Features (2024)

General

• Sleeps 2
• 1 x custom pillow-top queen size high-density foam mattress
• Mattress – 80” L x 56” W x 6” H
• Combination of welded aluminum 2” x 1” hot rolled rectangle tube and 1” x 1” hot rolled square tube aluminum alloy body construction

Chassis

• 5" x 2" – Q345 galvanized steel hot rolled rectangle tube frame
• Cruisemaster™ DO35 hitch
• 10? swing up and lockable jockey wheel
• 16 x 7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires & 1 x spare wheels
• X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
• 12? electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
• 4 x heavy duty lockable and adjustable drop down stabilizer legs

Exterior

• Free-standing 270° awning
• Full wrap around annex, enclosed roof, walls, floor and draft skirt
• 2 x 20lbs propane cylinder and cylinder holders
• 1 x 5 gallon jerry can holders
• 1x 31 gallon fresh water tank
• Water delivery – 12V electric marine diaphragm pump
• 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines
• External Slide out stainless steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
• Chequer plate stone guard & propane storage locker with forward-facing mud flap protection
• Fridge Slide – 39½” L x 21" H x 19¼” H
• Integrated front toolbox
• Manually operated double pull-down entry step

Major Appliances

• Supplied portable RV air conditioner
• Truma Aquago Comfort Plus instant hot water system (propane-operated)
• Dometic DFSD 12111 Furnace (propane operated)

Safety Features

• 2.4GHz digital wireless rear view camera + 7" portable monitor
• MDC LOK – coupling lock

Electrical

• 3 x 175W Solar Panels (525W Total)
• LiFePRO+® 12V 200Ah Lithium Iron Phosphate battery
• BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
• AIMS Power 2000W Pure Sine Wave Inverter
• Internal 12V LED lighting throughout with wireless switching
• External 12V LED lighting throughout, awning and offside white and yellow (bug light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights
• Light Connection Plug – 7-way trailer connector (SAE J2863 type) + 1 x 50A Anderson plug
• Stereo head unit with internal & external speakers
• HD LED TV with 12V compatibility, USB and full motion TV bracket

Internal Power Outlets

• 1 x 12V accessory sockets
• 1 x 5V dual USB charging port (1A & 2A split)
• 1 x F-type TV outlet
• 1 x 110V double pole outlets

External Power Outlets

• 1 x Anderson plugs
• 1 x 12V accessory sockets
• 1 x F-type TV inlet

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
